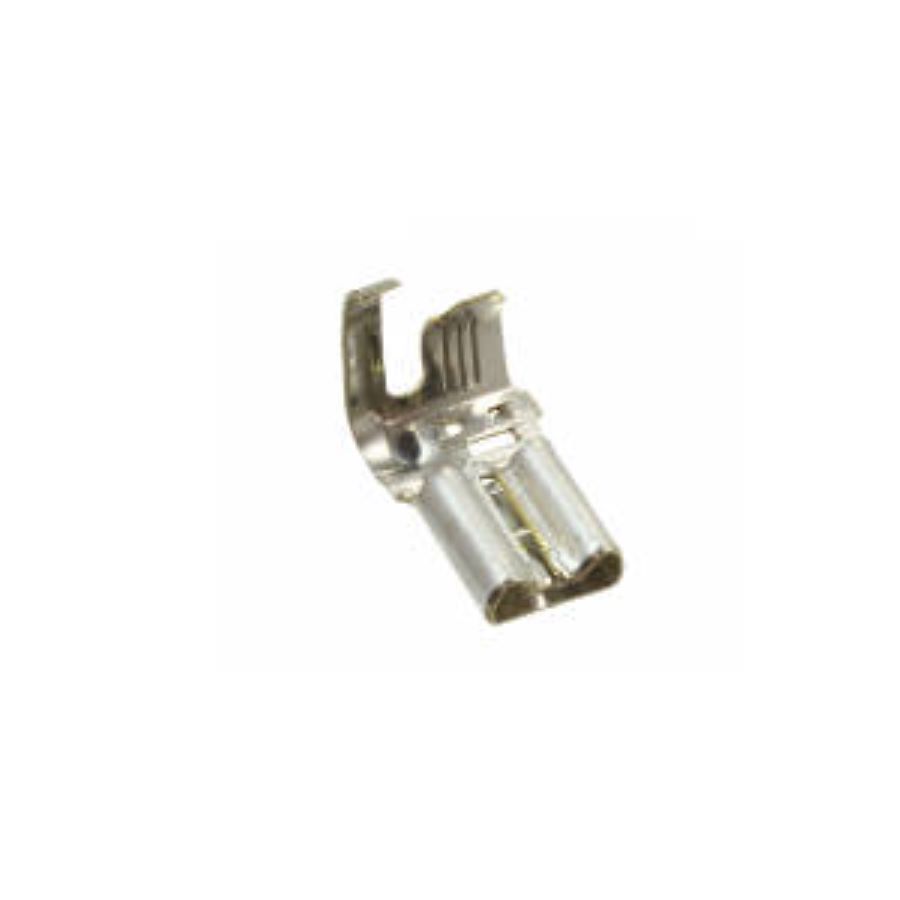

2232111-1
Manufacturer:
TE Connectivity
Mfr.Part #:
2232111-1
Datasheet:
Description:
Terminals SMD/SMT 18 AWG to 12 AWG Female
| Parameter | Value |
|---|---|
| Length | 17.018 mm |
| Termination | Receptacle |
| Material | Brass |
| Packaging | Reel |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Tab |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Female |
| ELV | Compliant |
| Tab Width | 6.35 mm |
| Wire/Cable Diameter | 5.33 mm |
| Wire/Cable Gauge | 18 AWG to 12 AWG |
| Insulation | Non-Insulated |
| Wire/Cable Type | Discrete |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 5.334 mm |
| Insulated Wire Support | Yes |
| Mating Tab Width | 6.35 mm |
| Tab Length | 7.75 mm |
| Tab Thickness | 810 µm |
| Sealable | No |
| Stud Size | 6.35 mm |
Stock: 4882
Distributors
pcbx
pcbxUnit Price$0.12482
Ext.Price$0.12482
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.12482 | $0.12482 |
| 10 | $0.10344 | $1.03440 |
| 50 | $0.09069 | $4.53450 |
| 100 | $0.07951 | $7.95100 |
| 500 | $0.06728 | $33.64000 |
| 1000 | $0.05694 | $56.94000 |
| 3000 | $0.05290 | $158.70000 |
| 5000 | $0.04914 | $245.70000 |
| 10000 | $0.04565 | $456.50000 |
